Call Flow Control

Manually toggle between two destinations in your call flow.

Settings

• Call Flow Toggle Feature Code Index: There are a total of 10 Feature code objects, 0-9, each can control a call flow and be toggled using the call flow toggle feature code plus the index
• Description: Description for this Call Flow Toggle Control.  This behaves as the "Name" entry on most other modules.
• Current Mode: This will change the current state for this Call Flow Toggle Control, or set the initial state when creating a new one
• Recording for Normal Mode: Message to be played in normal mode (Green/BLF off).  To add additional recordings use the "System Recordings" MENU
• Recording for Override Mode: Message to be played in normal mode (Green/BLF off). To add additional recordings use the "System Recordings" MENU
• Optional Password: You can optionally include a password to authenticate before toggling the call flow. If left blank anyone can use the feature code and it will be un-protected

Modes

• Normal Flow (Green/BLF off): Destination to use when set to Normal Flow (Green/BLF off) mode
• Override Flow (Red/BLF on): Destination to use when set to Override Flow (Red/BLF on) mode

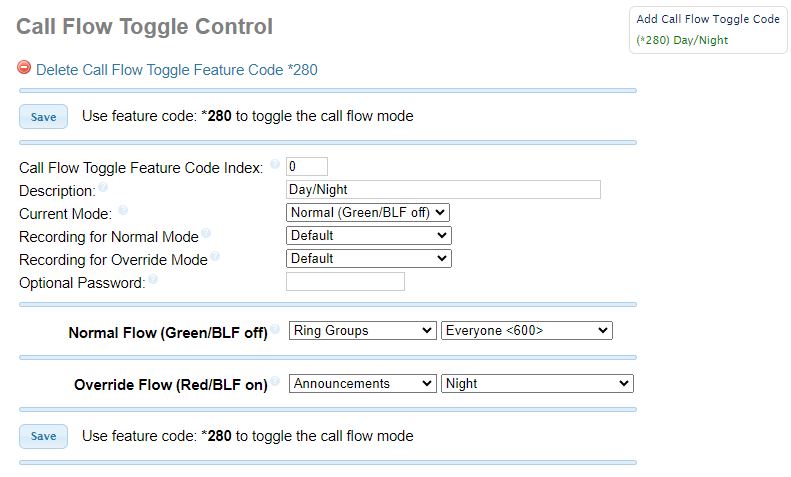

Figure 1: Normal Flow (Green/BLF off)

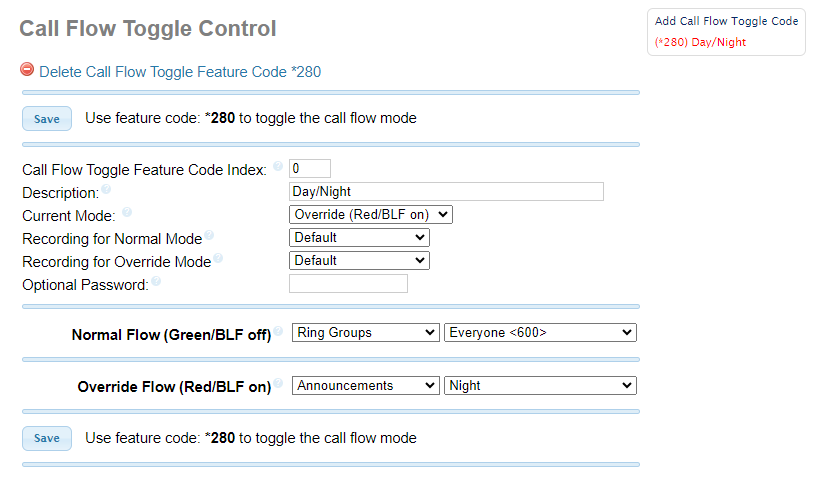

Figure 2: Override Flow (Red/BLF on)
